CameraController.Camera3D Class Reference

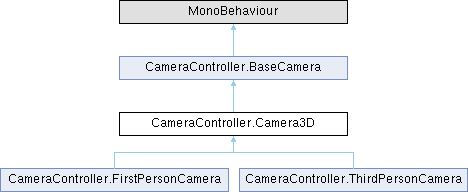

Inheritance diagram for CameraController.Camera3D:

Public Member Functions
void	SetRotationLimits (RotationLimits newYawLimits, RotationLimits newPitchLimits)
	Set the limits of the yaw and pitch rotation of the target follower.

Protected Member Functions
virtual void	OnEnable ()
override void	UpdateCamera ()
	Update the camera and the target follower position.
Protected Member Functions inherited from CameraController.BaseCamera
virtual void	Awake ()
virtual void	Update ()
virtual void	FixedUpdate ()
virtual void	LateUpdate ()
void	UpdateFollowerPosition ()
	Update the position of the target follower.
void	UpdateCameraPosition ()
	Update the position of the camera.
float	GetDeltaTime ()
	Get the deltatime based on the cuurent followmode.

Protected Attributes
Vector2	sensitivity
Protected Attributes inherited from CameraController.BaseCamera
Transform	target
Transform	targetFollower
Transform	cameraTransform
Vector3	offset
FollowMode	followMode
float	followDamping
Vector3	followSmoothDampVelocity

Properties
Quaternion	yaw [get]
	The rotation of the camera on the y axis.
Quaternion	pitch [get]
	The rotation of the camera on the x axis.
float	horizontalSensitivity [get, set]
float	verticalSensitivity [get, set]

Private Member Functions
void	OnDisable ()
void	GetMovementDir (InputAction.CallbackContext context)
void	SetTargetFollowerRotation ()
	Update the rotation of the the target follower.
Quaternion	GetNewRotation (Quaternion currentRotation, Quaternion rotationToAdd, Vector3 axis, RotationLimits rotationLimits)
	Get the next rotation on the specified axis.
bool	IsWithinAllowedRotation (Quaternion nextRotation, Quaternion minAllowedRotation, Quaternion maxAllowedRotation)
	Check wether the next rotation of the camera is within the limits.
Quaternion	GetLimitToBeAt (Quaternion currentRotation, Quaternion minRotation, Quaternion maxRotation, bool wrap)
	Get the limit the given rotation should go at.

Private Attributes
Quaternion	yawRotation = Quaternion.identity
Quaternion	pitchRotation = Quaternion.identity
RotationLimits	pitchRotationLimits
RotationLimits	yawRotationLimits
InputActionReference	look
Vector2	lookInputDir

Member Function Documentation

GetLimitToBeAt()

Quaternion CameraController.Camera3D.GetLimitToBeAt ( Quaternion currentRotation, Quaternion minRotation, Quaternion maxRotation, bool wrap )

private

Get the limit the given rotation should go at.

Parameters

currentRotation	th current rotation
minRotation	the minimum allowed rotation
maxRotation	the maximum allowed rotation
wrap	Wether the rotation should stay at the reached limit or go at the opposite limit.

GetNewRotation()

Quaternion CameraController.Camera3D.GetNewRotation ( Quaternion currentRotation, Quaternion rotationToAdd, Vector3 axis, RotationLimits rotationLimits )

private

Get the next rotation on the specified axis.

Parameters

currentRotation	the current rotation
rotationToAdd	the ammount of rotation to add
axis	the axis of the rotation
rotationLimits	the limits of the rotation

Returns

The product of the current rotation * the rotation to add

IsWithinAllowedRotation()

bool CameraController.Camera3D.IsWithinAllowedRotation ( Quaternion nextRotation, Quaternion minAllowedRotation, Quaternion maxAllowedRotation )

private

Check wether the next rotation of the camera is within the limits.

Parameters

nextRotation	The new rotation of the camera
minAllowedRotation	The smallest allowed rotation
maxAllowedRotation	The greatest allowed rotation

Returns

True if the next rotation is within the allowed angle, false otherwise

SetRotationLimits()

void CameraController.Camera3D.SetRotationLimits	(	RotationLimits	newYawLimits,
		RotationLimits	newPitchLimits )

Set the limits of the yaw and pitch rotation of the target follower.

Parameters

newYawLimits
newPitchLimits

UpdateCamera()

override void CameraController.Camera3D.UpdateCamera ( )

protectedvirtual

Update the camera and the target follower position.

Reimplemented from CameraController.BaseCamera.

---

The documentation for this class was generated from the following file:

• CameraController/Script/Camera/3DCameras/Camera3D.cs
